- Size: 200CBM
- Place of Origin: Jinan,China
- Brand Name: DAHAN
- Model Number: QTZ50(5008)
- Weight: 35000.000 kg
Quick Details

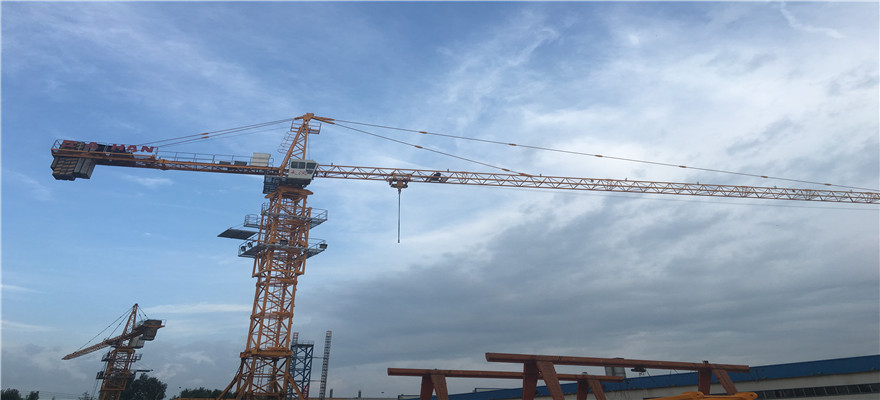

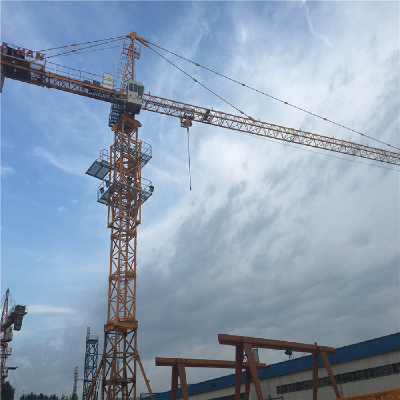

Feature | Tower Crane | Condition | New | Application | All kinds of demands |
Rated Loading Capacity | 4000KGS | Rated Lifting Moment | 400KN.M | Max. Lifting Load | 4000KGS |
Max. Lifting Height | 120M | Span | 3-50M | Place of Origin | Shandong, China (Mainland) |
Brand Name | DAHAN | Model Number | QTZ50(5008) | Welding System | Panasonic Robot Welding Line |
Painting Process | Impeller Blasting System | Cabin Type | Space Capsule with Air-condition | Electrical Equipment | France Schneider Brand |
Packaging & Delivery
Packaging | 4*40HQ containers |
Delivery | about 10 days delivery at qingdao port |
- Size: 200CBM
- Place of Origin: Jinan,China
- Brand Name: DAHAN
- Model Number: QTZ50(5008)
- Weight: 35000.000 kg
Rated load moment | KN.m | 500 | 500 | 500 | 500 |
Max.load capacity | t | 4 | 4 | 4 | 4 |
Max.working radius | m | 48 | 48 | 50 | 50 |
Rated load capacity at max.radius | t | 1.0 | 1.0 | 0.8 | 1.0 |
Max.height | m | 29 Freestanding | 29 Freestanding | 29 Freestanding | 29 Freestanding |
120 Attaching | 120 Attaching | 120 Attaching | 120 Attaching | ||
Hoisting speed | m/min | a=2 70/30/9 | a=2 70/30/9 | a=2 70/30/9 | a=2 70/30/9 |
a=4 35/17.5/4.5 | a=4 35/17.5/4.5 | a=4 35/17.5/4.5 | a=4 35/17.5/4.5 | ||
Trolley speed | m/min | 25.5/38.6 | 25.2/38.6 | 25.2/38.6 | 25.2/38.6 |
Slewing speed | r/min | 0.6 | 0.6 | 0.6 | 0.6 |
Climbing speed | m/min | 0.6 | 0.6 | 0.6 | 0.6 |
weight | t | 25.82 | 25.82 | 25.82 | 25.82 |
Motor total power | kw | 36.4 | |||
Working voltage | v | ~380v±5%HZ | |||
Working temperature | degree | -20~±40 | |||
Max.working wind pressure | N/m2 | 250 |
