- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ100(6013)
- Weight: 30000.000 kg
Quick Details

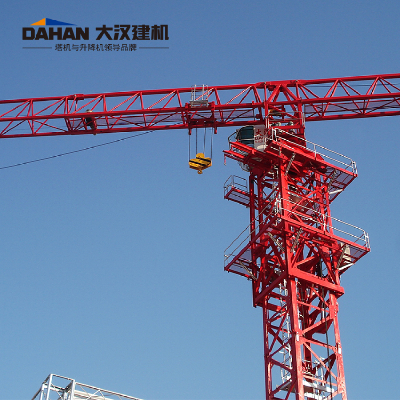

| Feature | Tower Crane | Condition | New | Application | Construction, Structure |
| Rated Loading Capacity | 6T | Rated Lifting Moment | 1000KN.m | Max. Lifting Load | 6T |
| Max. Lifting Height | 150M | Span | 60m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | Dahan | Model Number | QTZ100 (6013) | Basic Height | 45m |
| Main Chord Steel | 135*135*12 steel tube | Mast Section Specification | 1.8m*1.8m*2.8m | Hoisting Power | 24/24/5.4KW |
| Trolley Power | 3.3/2.2KW | Slewing Power | 3.7KW*2 | Climbing Power | 7.5KW |
| Power | 380V,50Hz(can be changed to the client's requirements) | Electrical Equipment | France Schneider Contactor | Working Temperature | -20- 40 |
Packaging & Delivery
| Packaging | 7*40HQ |
| Delivery | 15 Days |
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ100(6013)
- Weight: 30000.000 kg
specifications
Name | Unit | Parameter | ||
Rated Load Moment | KN·m | 1000 | ||
MAX Hoisting Capacity | t | 8 | ||
Rated Hoisting Capacity Max Radius | t | 1.3 | ||
Working Radius | m | 3---60 | ||
Height | Freestanding | m | a=2,45 | |
a=4,45 | ||||
Attaching | m | a=2,220 | ||
a=4,110 | ||||
Hoisting Speed | Double Rate | a=2 | a=4 | |
Lifting Speed | m/min | 80/40/10 | 40/20/5 | |
Slewing Speed | r/min | 0.62 | ||
Trolleying Speed | m/min | 48/24 | ||
The Max. Slewing Radius | m | 40 | ||
Tail Slewing Radius | m | 10 | ||
Temperature of Working Environment | -20∼ 40 | |||
