Product Details
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ63(5510)
- Weight: 30000.000 kg
Quick Details

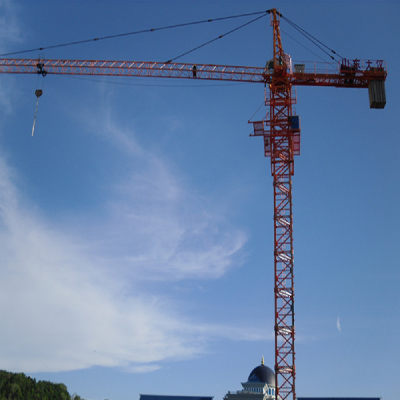

| Feature | Tower Crane | Condition | New | Application | Constrction,Bridge,Wharf etc |
| Rated Loading Capacity | 6t | Rated Lifting Moment | 630kn.m | Max. Lifting Load | 6t |
| Max. Lifting Height | 150m | Span | 3-55m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | Dahan | Model Number | QTZ63 (5510) | Max. Lifting Height | 150m |
| Jib Length | 55m | Rated Load at Jib End | 1.0t | Mast Section Dimension | 1.6*1.6*2.5 |
| Main Chord | 160*160*16 | Freestanding Height | 40m | Material of Steel | Q345B |
| Voltage & Frequency | 380v/50hz,380v/60hz,400v/50hz,440v/60hz | Working Temperature | -20~40 | Color | blue/red/yellow |
Packaging & Delivery
| Packaging | 6*40 HQ |
| Delivery | about 20 Days after recriving deposit |
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ63(5510)
- Weight: 30000.000 kg
Hoisting Technical Performance
Hoisting | Hoisting Speed | Fall | / | α=2 | α=4 | ||||
Speed | m/min | 8.5 | 40 | 80 | 4.25 | 20 | 40 | ||
Corresponding Maximum Load Capacity Weight | t | 3.0 | 3.0 | 1.5 | 6.0 | 6.0 | 3.0 | ||
Power | Kw | 24/24/5.4 | |||||||
Slewing | Slewing Speed | r/min | 44/22 | ||||||
Power | Kw | 3.3/2.2 | |||||||
Derricking | Derricking Speed | m/min | 0.6 | ||||||
Power | Kw | 3.7X2 | |||||||
Jacking | Jacking Speed | m/min | 0.55 | ||||||
Power | Kw | 25 | |||||||
| Operating Pressure | Mpa | 25 | |||||||
Power Total | Kw | 34.7(not including jacking institution) | |||||||
