- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ803(5613)
- Weight: 30000.000 kg
Quick Details
| Feature | Tower Crane | Condition | New | Application | building,construction,structure |
| Rated Loading Capacity | 8t | Rated Lifting Moment | 800KM.m | Max. Lifting Load | 8t |
| Max. Lifting Height | 150m | Span | 60m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | Dahan | Model Number | QTZ80 (5613) | Certification | ISO |
| Warranty | 1 year | Jib Length | 56m | mast section | 1.6*1.6*2.8 |
| main chord | 135*135*12 | Main Chord Materials | Q345B | narmal height | 40m |
| Tip load | 1.3t | Working Temperature | -20- 40 | Voltage | 380v/50hz,380v/60hz,400v/50hz,440v/60hz... |
| Colour | Yellow/Red/Blue | Slewing Power | 3.7KW*2 |
Packaging & Delivery
| Packaging | 6*40HQ 1*20GP |
| Delivery | around 20 days |
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ803(5613)
- Weight: 30000.000 kg

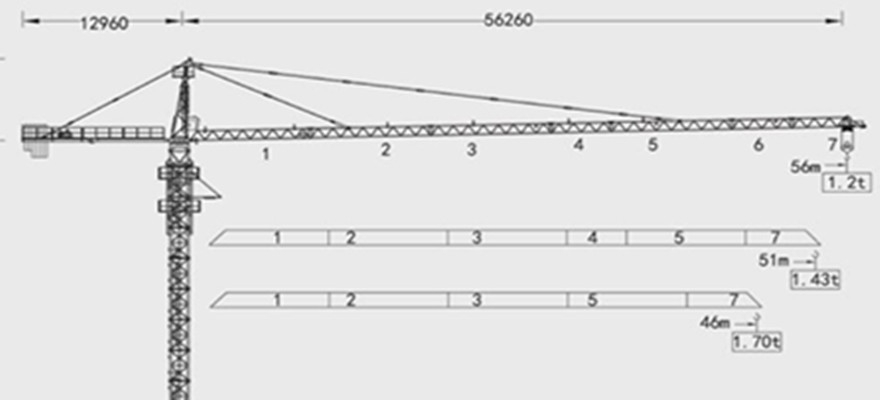

Tower Crane Technical Parameters | ||||||||||||
Grade | U5 | Wind grade of the max.installation height when assembly,disassembly,hoisting or declining the sections | ||||||||||
Load States | Q2 | Wind grade with work state | ||||||||||
Working Class | A5 | Wind grade without work state | ||||||||||
Parameter Name | Unit | Design value
| ||||||||||
Rated Load Moment | kN.m | 800
| ||||||||||
Max.rated Load Capacity | t | 6.0
| ||||||||||
Working Radius | m | 3-56
| ||||||||||
Rated Load Capacity at max.Radius | t | 1.3
| ||||||||||
Height | Freestanding Height | m | 40
| |||||||||
Attaching | Double Rate | m | 120
| |||||||||
Quadruple Rate | m | 60
| ||||||||||
Hoisting Winch |
Hoisting Speed | Rate | / | α=2 | α=4
| |||||||
Speed | m/min | 8.5 | 40 | 80 | 4.25 | 20 | 40
| |||||
Correspondent Max.load Capacity | t | 3 | 3 | 1.2 | 6 | 6 | 2.4
| |||||
Motor Type | / | YZTD225L2-4/8/32
| ||||||||||
Power | kW | 24/24/5.4
| ||||||||||
Rotating Speed | r/min | 1450/720/165 | ||||||||||
Slewing winch | Slewing Speed | r/min | 0.6 | |||||||||
Motor Type | / | YZR132M2-6 | ||||||||||
Power | kW | 3.7×2 | ||||||||||
Rotating Speed | r/min | 908 | ||||||||||
Derricking Winch | Derricking Speed | m/min | 48/24 | |||||||||
Motor Type | / | YDEJ132S-4/8 | ||||||||||
Power | kW | 3.3/2.2 | ||||||||||
Rotating Speed | r/min | 1450/720 | ||||||||||
Climbing Winch
| Climbing Speed | m/min | 0.55 | |||||||||
Rated Working Pressure of Hydraulic System | MPa | 25 | ||||||||||
Motor Type | / | Y132M-4 | ||||||||||
Power | kW | 7.5
| ||||||||||
Rotating Speed | r/min | 1440
| ||||||||||
Tail Slewing Radius | m | 12.093
| ||||||||||
Counterweight | t | 12
| ||||||||||
Power | kW | 42.2
| ||||||||||
