Product Details
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ315(7527)
- Weight: 30000.000 kg
Quick Details
| Feature | Tower Crane | Condition | New | Application | Construction |
| Rated Loading Capacity | 2.7T | Rated Lifting Moment | 3150KN.m | Max. Lifting Load | 16T |
| Max. Lifting Height | 215m | Span | 75M | Place of Origin | Shandong, China (Mainland) |
| Brand Name | DAHAN | Model Number | QTZ315(7527) | Certification | CE ISO SGS |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas | Mast Section Size | 2*2*3m |
| Main Chord | 200*200*20 | Free Standing Height | 53M | Max. Height | 215m |

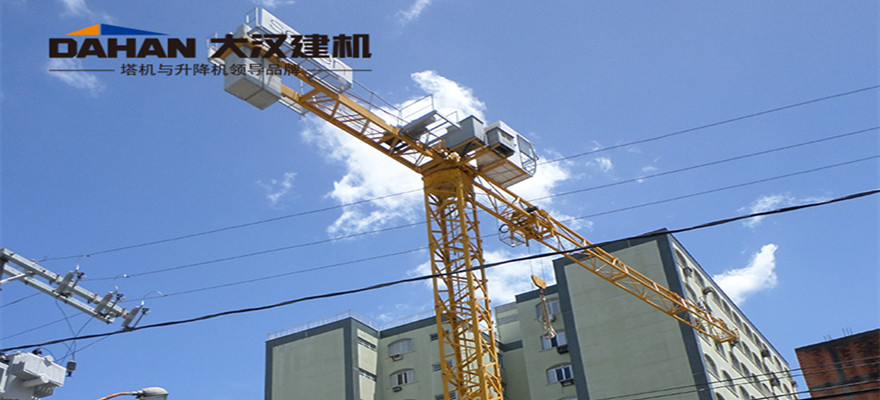

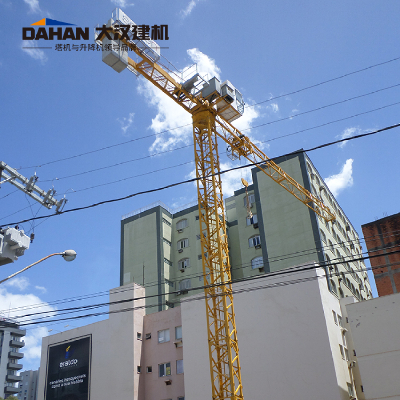

| Total Power | 88.5kw | Type | Topless Tower Crane | Item Name | QTZ315(7527) 16T Topless Ntp Tower Crane With 70m Boom Length |
| Foundation | Embedded Foundation Leg | Trolleying Speed | 0-50m/min | Slewing Speed | 0-0.7r/min |
Packaging & Delivery
| Packaging | Container for QTZ315(7527) 16T Topless Ntp Tower Crane With 70m Boom Length |
| Delivery | Shipped in 15 days after payment |
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ315(7527)
- Weight: 30000.000 kg
specifications
Hoisting |
Fall | / | a=2 | α=4 | ||
Speed | m/min | 0-40 | 0-80 | 0-20 | 0-40 | |
| Load Capacity Weight | t | 8 | 4 | 16 | 8 | |
| Power | KW | 55 | ||||
Trollerying | Speed | m/min | 0-50 | |||
| Power | KW | 11 | ||||
Slewing | Speed | m/min | 0-0.7 | |||
| Power | m | 7.5x3 | ||||
Jacking | Speed | m | 0.45 | |||
| Operating Pressure | MPa | 25 | ||||
| Power | KW | 7.5 | ||||
| Total Power | KW | 88.5 | ||||
