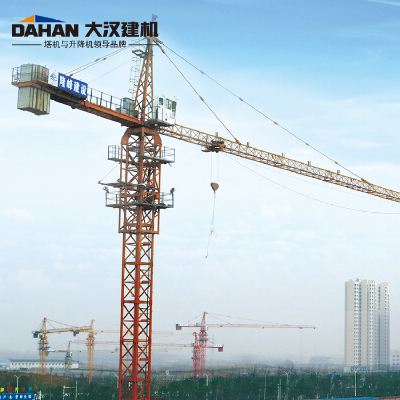

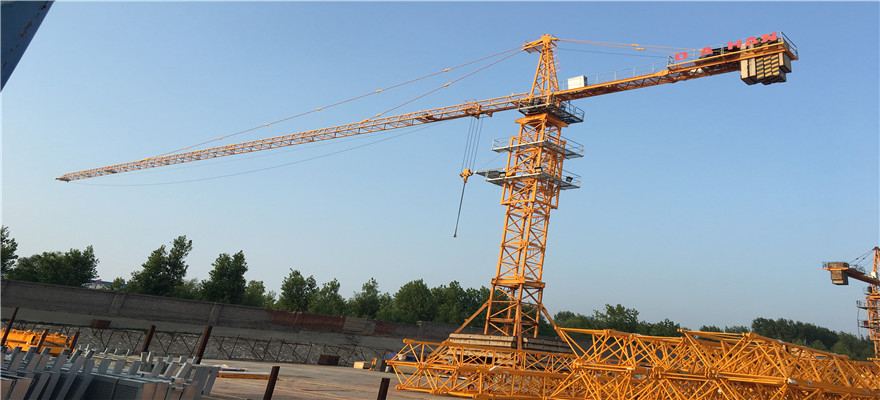

Dahan Top Kit Tower Crane

Dahan Top Kit Tower Crane

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-01-07
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  150CBM
  • Place of Origin:  China
  • Brand Name:  DAHAN
  • Model Number:  QTZ50(4810)
  • Weight: 30000.000 kg

Quick Details

Feature

Tower Crane

Condition

New

Application

Construction

Rated Loading Capacity

4T

Rated Lifting Moment

500KN.m

Max. Lifting Load

4T

Max. Lifting Height

120m

Span

48m

Place of Origin

Shandong, China (Mainland)

Brand Name

Dahan

Model Number

QTZ50 (4810)

Certification

ISO CE SGS

Warranty

12 Months

After-sales Service Provided

Engineers available to service machinery overseas

Tip load

1.0T

Freestanding height

29m

Main chord steel

160*160*12 angle iron

Steel material

Q345B

Mast section specification

1.5m*1.5m*2.2m

Volatage and frequency

380V,50Hz(can be changed to the client's requirements)

Working temperature

-20- 40

Hoisting power

15/15/4KW

Slewing power

3.7KW

Trolley power

2.2/1.5KW

Packaging & Delivery

Packaging 4 units(40HQ containers) for 29m height
Delivery 1-3 days after deposit


  • Size:  150CBM
  • Place of Origin:  China
  • Brand Name:  DAHAN
  • Model Number:  QTZ50(4810)
  • Weight: 30000.000 kg

Technique parameters

QTZ50(4810) Top Kit Tower Crane
ItemUnitDetails
Max. loadt4
Load at jibt1
Jib lengthm48
Free standing/Max. heightm29/120
Hoisting  Mech.Rate/2 fall4 fall
Speedm/min10.835715.417.535
Load capacityT220.8442
Powerkw15/15/4
Trolley Mech.Speedm/min40/20
Powerkw2.4/1.5
Slewing Mech.Speedr/min0.6
Powerkw3.7
Jaking Mech.Speedm/min0.4
Operating pressureMpa20
Powerkw4
Mast section sizem1.5*1.5*2.2
Main chordAngle steel 160*160*12 Q345B Mn Steel
Working voltagev380V,50HZ or meet clients requirement
Working temperature-20-40
