Product Details
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ80(6010)
- Weight: 30000.000 kg
Quick Details

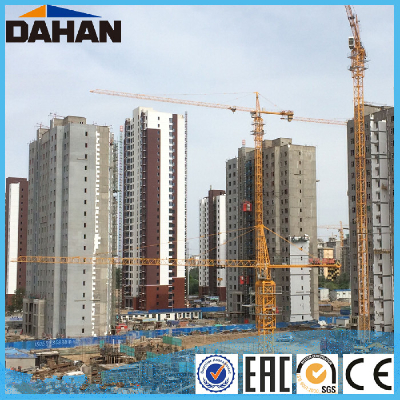

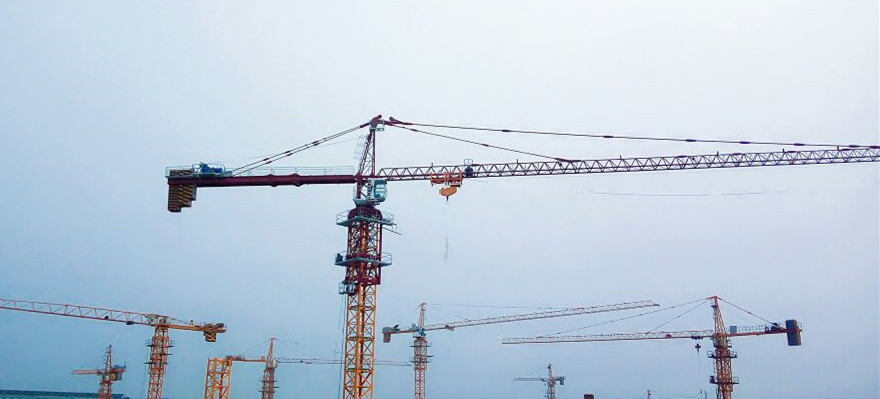

| Feature | Tower Crane | Condition | New | Application | Construction,Building,Structure |
| Rated Loading Capacity | 8t | Rated Lifting Moment | 800kn.m | Max. Lifting Load | 8t |
| Max. Lifting Height | 197m | Span | 60m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | DAHAN | Model Number | QTZ80(6010) | Mast section | 1.8*1.8*2.8 |
| Main Chord | 135*135*12 | Jib length | 60m | free-standing height | 46m |
| Material | Q345B | Cutting Machine | 6m*12m CNC Plasma Machine | Certification | ISO9001:2008,CE, GOST,Korea certificate |
| Voltage/Frequency | 380v/50hz, Changeable |
Packaging & Delivery
| Packaging | 7*40 HQ |
| Delivery | about 15 Days after receiving deposit |
- Size: 100
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ80(6010)
- Weight: 30000.000 kg
Hoisting Technical Performance
Hoisting | Hoisting Speed | Fall | / | α=2 | α=4 | ||||
Speed | m/min | 0~40 | 0~80 | 0~20 | 0~40 | ||||
Corresponding Maximum Load Capacity Weight | t | 4 | 2 | 8 | 4 | ||||
Power | Kw | 30/30 | |||||||
Slewing | Slewing Speed | r/min | 44/22 | ||||||
Power | Kw | 3.3/2.2 | |||||||
Derricking | Derricking Speed | m/min | 0~0.62 | ||||||
Power | Kw | 3.7X2 | |||||||
Jacking | Jacking Speed | m/min | 0.55 | ||||||
Power | Kw | 7.5 | |||||||
| Operating Pressure | Mpa | 25 | |||||||
Power Total | Kw | 40.7(not including jacking institution) | |||||||
