Product Details
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ63(5010)
- Weight: 30000.000 kg
Quick Details

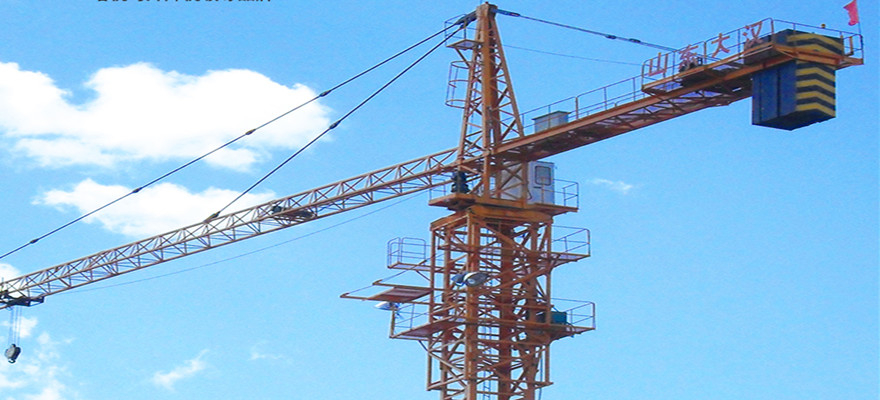

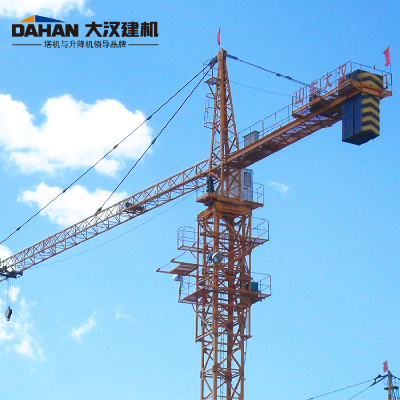

| Feature | Tower Crane | Condition | New | Application | Construction,Building,Structure |
| Rated Loading Capacity | 4t/6t | Rated Lifting Moment | 630KN.M | Max. Lifting Load | 4t/6t |
| Max. Lifting Height | 120m | Span | 50m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | Dahan | Model Number | QTZ63 (5010) | Jib Length | 50m |
| Mast Section | 1.6*1.6*2.5 | Main Chord | 160*160*14 | Main Chord Materials | Q345B |
| Free-standing Height | 29m | Tip Load | 1.0t | Temperature | -20 Degree~40 Degree |
| Color | yellow/red/blue | Highest Attached Height | 120m | Material | Q345B Maganese Steel |
Packaging & Delivery
| Packaging | Container for QTZ80(6012) DAHAN 6T Tower Crane for Sale from Shandong |
| Delivery | Shipped in 5 Days after Payment |
- Place of Origin: China
- Brand Name: DAHAN
- Model Number: QTZ63(5010)
- Weight: 30000.000 kg
Specifications
Radios | 3~12.6 | 13 | 15 | 17 | 19 | 21 | 23 | 24.33 | 25 | 27 | 29 | |
Hoisting Load (t) | α=4(Fall) | 5.0 | 4.83 | 4.14 | 3.6 | 3.18 | 2.84 | 2.56 | 2.42 | 2.33 | 2.12 | 1.95 |
α=2 (Fall) | 2.50 | 2.42 | 2.21 | 2.03 | ||||||||
Radius (m) | 31 | 33 | 35 | 37 | 39 | 41 | 43 | 45 | 47 | 49 | 50 | |
Hoisting Load (t) | α=4 (Fall) | 1.80 | 1.67 | 1.55 | 1.45 | 1.35 | 1.27 | 1.19 | 1.12 | 1.05 | 0.99 | 0.97 |
α=2 (Fall) | 1.87 | 1.73 | 1.61 | 1.50 | 1.40 | 1.31 | 1.23 | 1.16 | 1.09 | 1.03 | 1.0 | |
