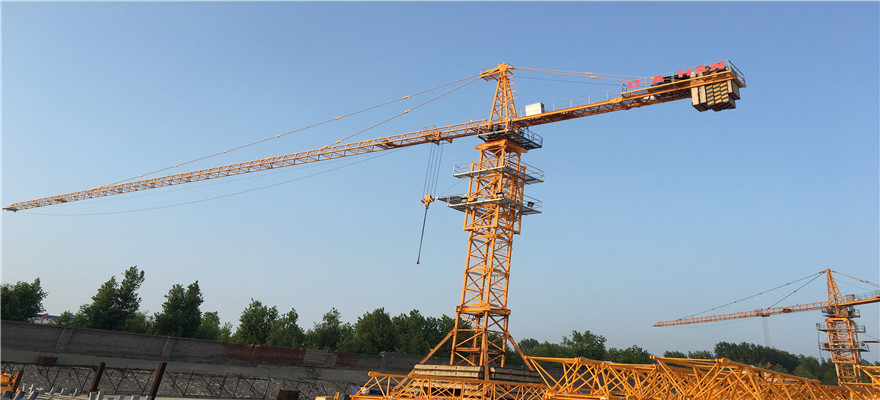

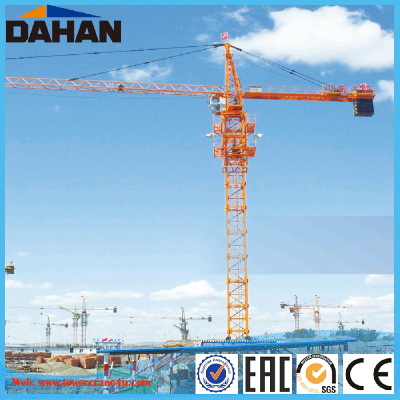

Hot-sales 6t/8t QTZ80(5613) Tower Crane

Hot-sales 6t/8t QTZ80(5613) Tower Crane

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-01-07
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  150CBM
  • Place of Origin:  China
  • Brand Name:  DAHAN
  • Model Number:  QTZ80(5613)
  • Weight: 30000.000 kg

Quick Details

Feature

Tower Crane

Condition

New

Application

All kinds of demand

Rated Loading Capacity

6T/8T

Rated Lifting Moment

800kn.m

Max. Lifting Load

6T/8T

Max. Lifting Height

200m

Span

3-60m

Place of Origin

Shandong, China (Mainland)

Brand Name

DAHAN tower crane

Model Number

TC5613/6010

Mast section

1.8*1.8*2.8m

Main steel

135*135*12 Q345B

Freestanding height

40m

Max. height

150m

Color

Obtional

Voltage,frequency

Obtional



Packaging & Delivery

Packaging Details                                          Seaworthy packing (6*40HQ containers)
Delivery Detail                                          About 10 days delivery at qingdao port


  • Size:  150CBM
  • Place of Origin:  China
  • Brand Name:  DAHAN
  • Model Number:  QTZ80(5613)
  • Weight: 30000.000 kg

QTZ80 mechanisms

parameters

units

QTZ80(5613)

QTZ80(6010)

Rated load moment

KN.m

800

800

Max load

t

6/8

6/8

Max working radius

m

56

60

Max height

freestanding

m

45

45

attaching

150

150

hoisting speed

a=2

m/min

8/40/80

8/40/80

b=2

4/20/40

4/20/40

Tip capacity

t

1.3

1.0

Trolleying speed

m/min

21/42

21/42

Swing speed

r/min

0.62

0.62

Climbing speed

m/min

0.4

0.4

Crane weight

t

42.5

43.0

Total power

KW

36.4

36.4

Working voltage

V

~380V±50%HZ

Max working pressure

N/

250

Load diagram:

Jib (m)

Fall

R(Cmax) (m)

C(max) (t)

12

16

20

24

28

32

36

40

44

48

52

56

60

60

IV

12.0

8.0

8.0

5.71

4.39

3.52

2.91

2.45

2.1

1.82

1.6

1.41

1.25

1.11

1.0

II

21.6

4.0

4.0

4.0

4.0

3.52

2.91

2.45

2.1

1.82

1.6

1.41

1.25

1.11

1.0

56

IV

13.16

8.0

8.0

6.38

4.92

3.96

3.28

2.78

2.39

2.09

1.83

1.63

1.46

1.30


II

23.8

4.0

4.0

4.0

4.0

3.96

3.28

2.78

2.39

2.09

1.83

1.63

1.46

1.30
