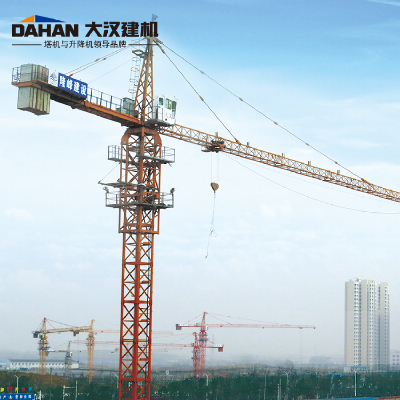

QTZ63(5013) 6t Moving Crane Tower Made In China

QTZ63(5013) 6t Moving Crane Tower Made In China

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Qingdao, Shanghai, Ningbo
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Dahan Construction Machinery Co.,Ltd
| Factory
Experience:2001-01-07
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  100cbm
  • Place of Origin:  Jinan, Shandong, China
  • Brand Name:  DAHAN
  • Model Number:  QTZ63(5013)
  • Weight: 30000.000 kg

Quick Details

Feature: Tower Crane

Condition: New

Application: Construction

Rated Loading Capacity: 1.3T

Rated Lifting Moment: 1000KN.m

Max. Lifting Load: 6T

Max. Lifting Height: 200m

Span: 60M

Place of Origin: Shandong, China (Mainland)

Brand Name: DAHAN

Model Number: QTZ63(5013) 6t

Certification: CE ISO SGS

Warranty: 12 Months

After-sales Service Provided: Engineers available to service machinery overseas

Mast Section Size: 1.8*1.8*2.8m

Main Chord: 135*135*12

Free Standing Height: 45M

Max. Height: 200m

Total Power: 34.7kw

Type: Topkit Tower Crane

Item name: QTZ63(5013) 6t Moving Crane Tower Price With Mast Section

Foundation: Embedded Foundation Leg

Trolleying Speed: 44m/min

Slewing Speed: 0.6r/min


Packaging & Delivery

Packaging Details: Container for QTZ63(5013) 6t Moving Crane Tower

Delivery Detailed: 3 days after deposit


  • Size:  100cbm
  • Place of Origin:  Jinan, Shandong, China
  • Brand Name:  DAHAN
  • Model Number:  QTZ63(5013)
  • Weight: 30000.000 kg


Foundation Load


   V(KN)    H(KN)   Mk(KN.m)   M(KN.m)   F1(KN)   F2(KN)
In service   501     31    169   1330    501    752
Out of service   441     105    0   1945    606    1027

Load Diagrams

3-13.8 16 18 21 23 2525.5  28 31 33 35 3740 42 45 47 50m
   65.094.453.723.343.02 3.0 2.692.382.212.051.921.741.631.501.411.3t
3-14.1 16  18 21 23 25 26  28  31
  33  35  37 40  4243.4 m
   65.2 4.553.803.42 3.1 3.0 2.752.44 2.26  2.1 1.971.78 1.68 1.6 t
3-14.4  16  18  21  23 25 26.5  28 31  33 35 36.8 m
   65.32 4.85 3.89 3.503.17 3.0 2.82 2.5 2.322.15 2.0 t

Mechanisms



    Trolleying

    Speed          m/min        44/22
    Power          N.m       3.2/2.2



     Slewing

    Speed          r/min        0.6
    Power          N.m        3.7*2



     Jacking

    Speed          m/min        0.55
Operating Pressure          MPa        25
    Power          KW        5.5
  Total Power           KW        34.7
